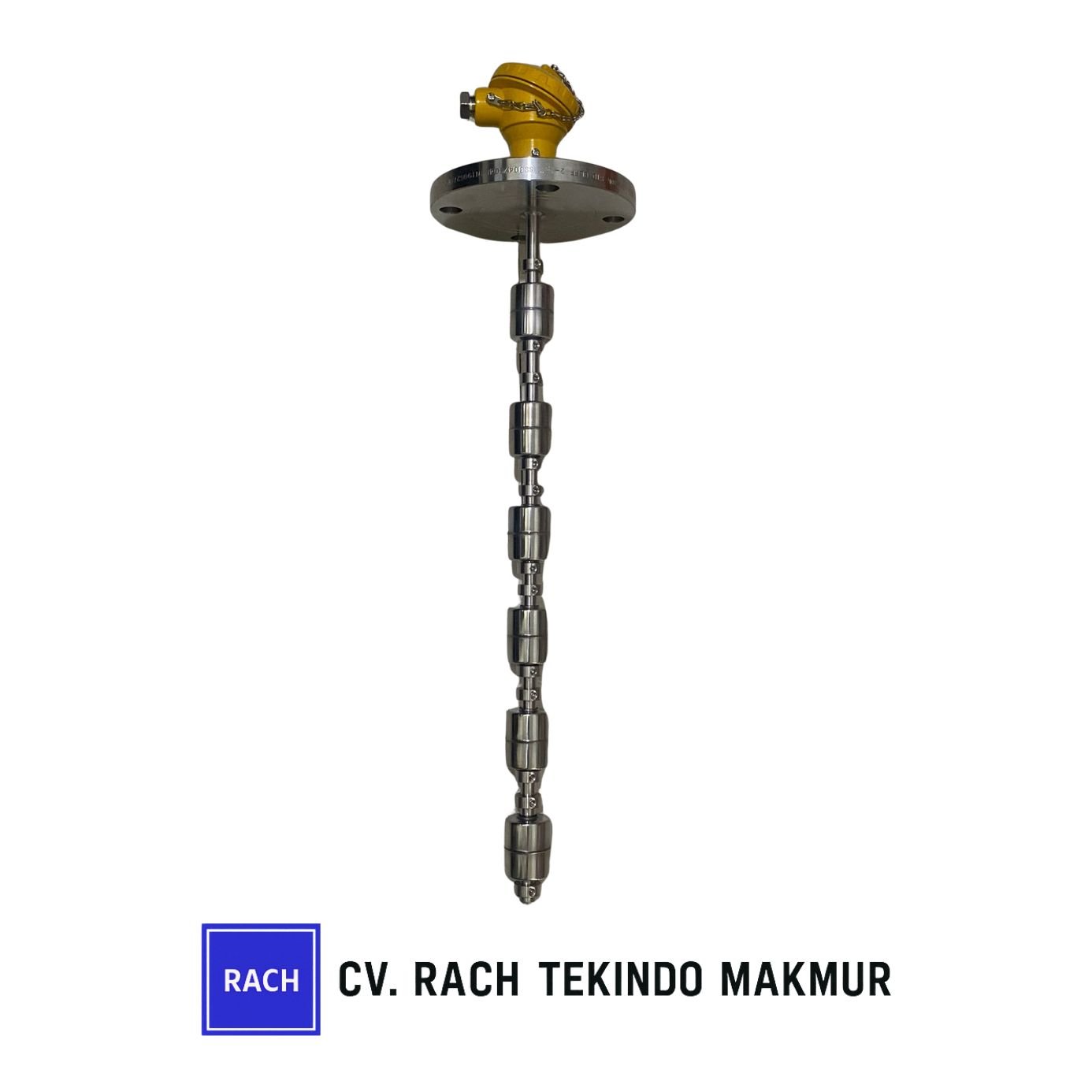

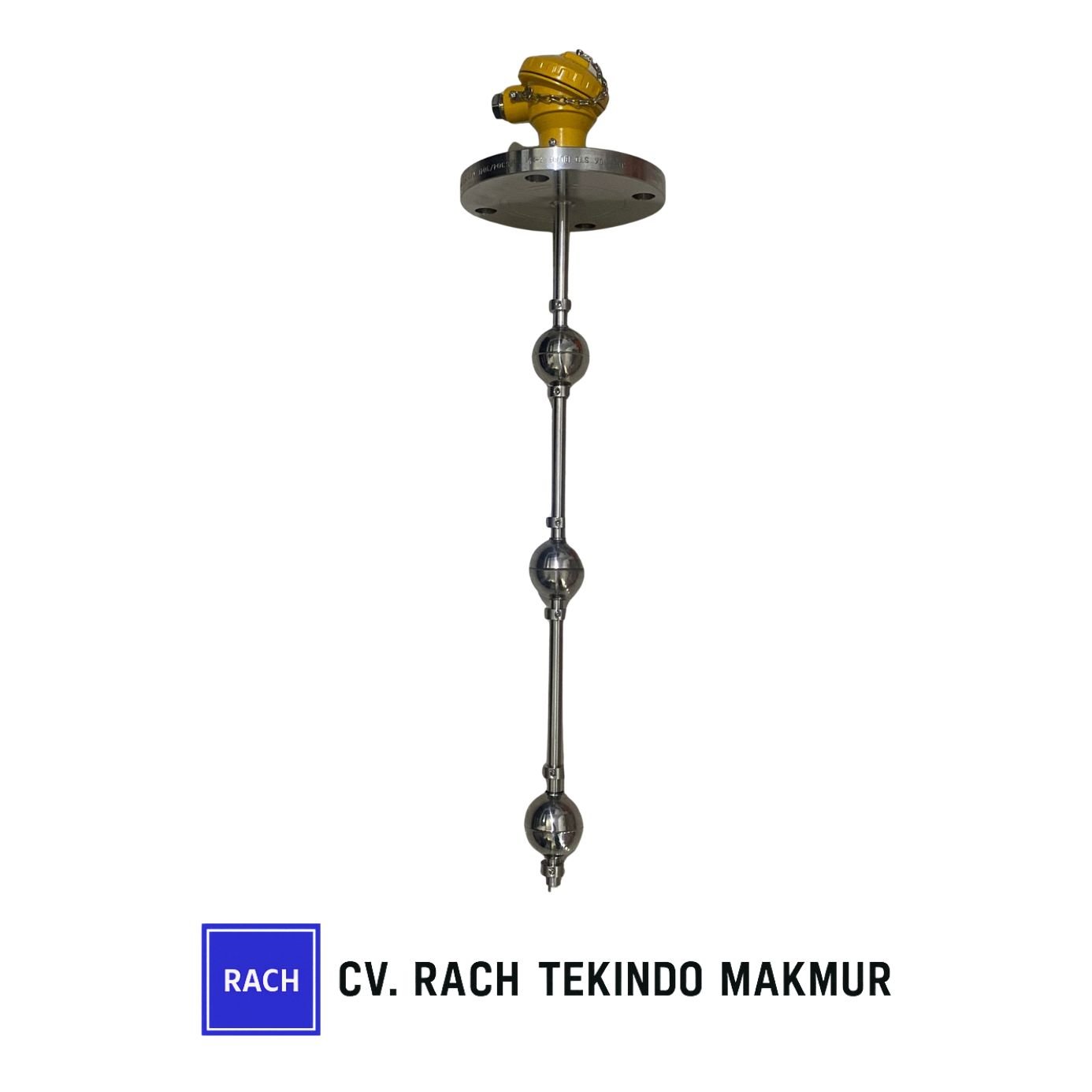

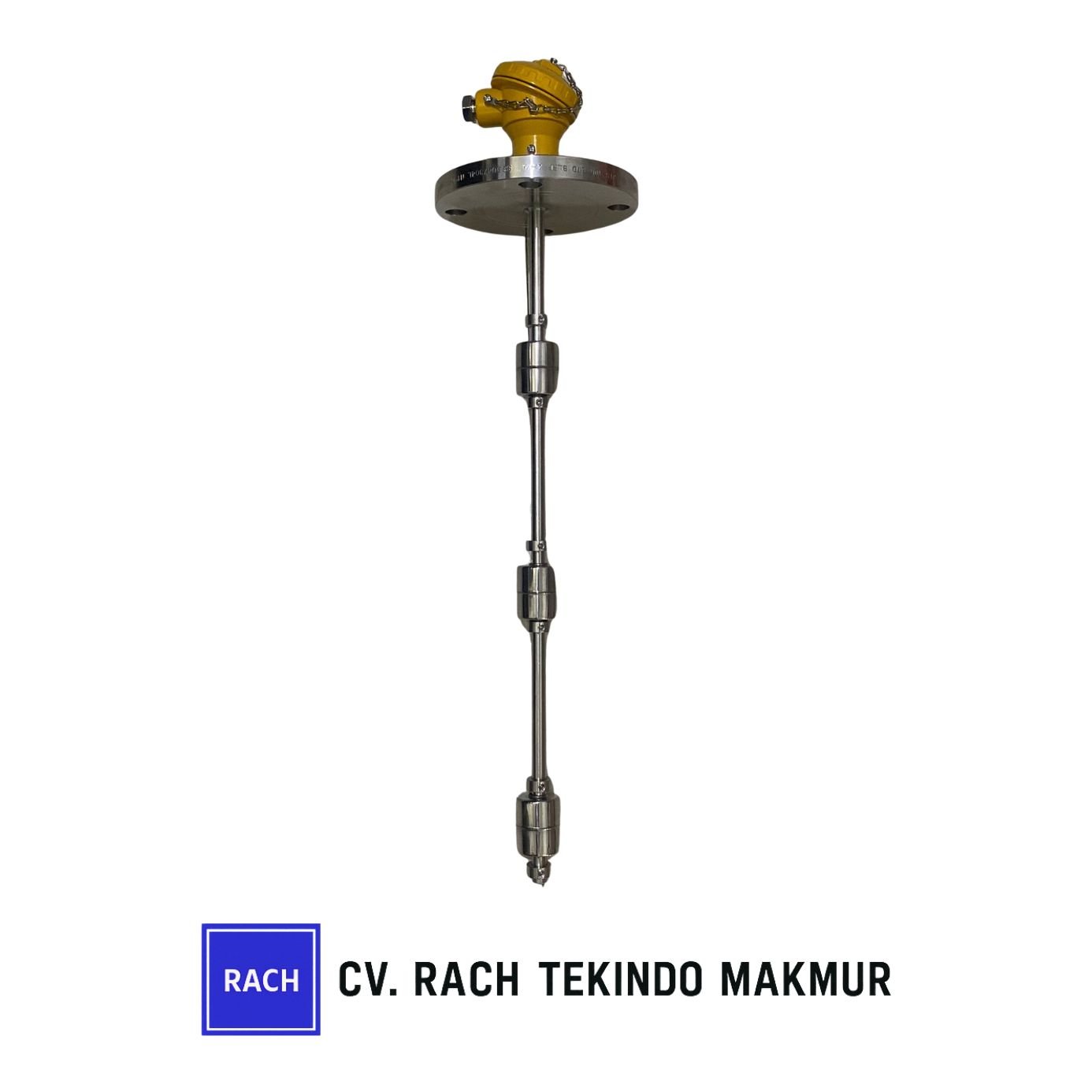

The LLS series is a line of magnetic float level switches based on two principles: buoyancy and magnetism. Single-point or 8-point liquid magnetic float level switches are tailored to your application.
Installation : Top/side.
Connection : Screw, Flange (JIS, ANSI, DIN, PN), Blind ferrule (upon request)
Material : Stainless steel 304, 316L
Tube : 13mm, 16mm,21mm,
Float : 40mm, 45mm, 52mm, 75mm
Maximum Pressure : 16 barg
Maximum Temperature : 200°C
Output : SPST, SPDT Contact
Rating : 1A-230 VAC/DC, 40VA
Cover : IP65 Aluminum Head
Electrical Connection : M20 x 1.5mm
Specific Gravity : 0.5-1.0 gr/cm3
Media : Water, air heat, oil, chemicals, liquids, etc.
