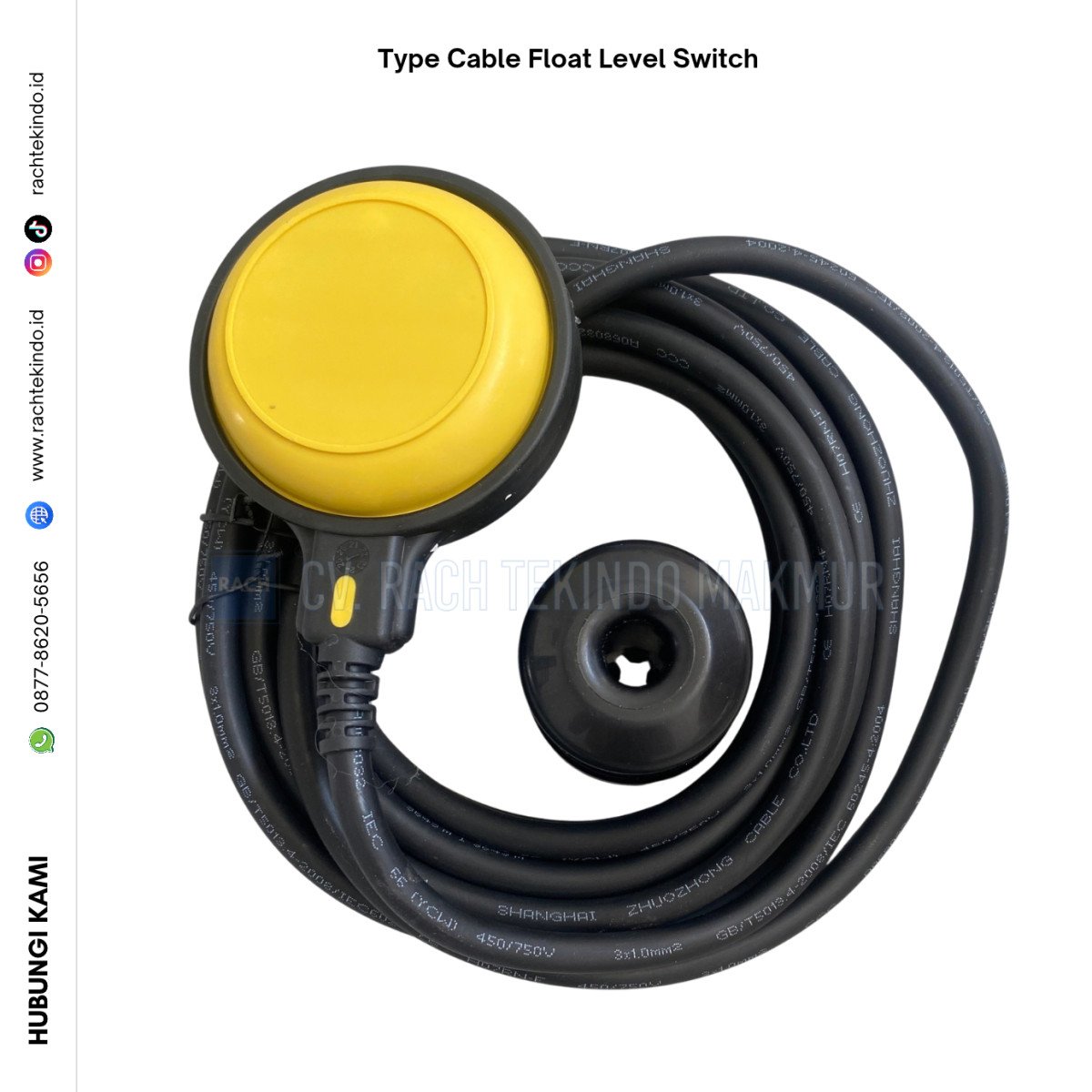

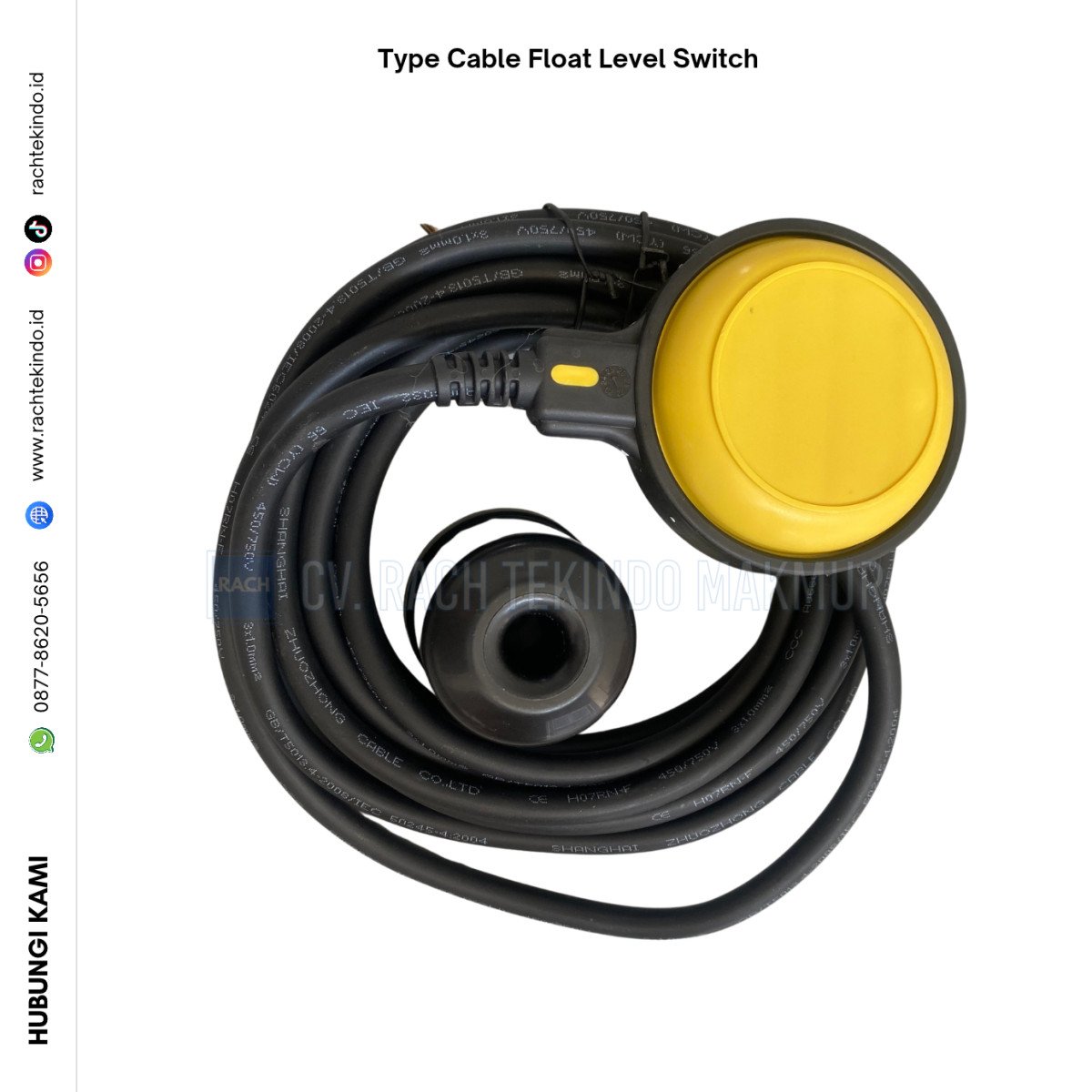

Type Cable Float Level Switch

The Cable Float Level Switch is a liquid level sensor designed to automatically detect and control liquid levels in tanks, reservoirs, wells, sumps, and water treatment systems. It operates using a floating body attached to an electrical cable. As the liquid level rises or falls, the float changes position and activates an internal switch to open or close an electrical circuit.

Cable Float Level Switches are widely used to automatically start or stop pumps, provide high-level and low-level alarms, and protect pumps against dry running and overflow conditions. Their simple design, reliable operation, and easy installation make them a cost-effective solution for automatic liquid level control.

Manufactured from high-quality plastic and featuring IP68 protection, the Cable Float Level Switch is resistant to water, moisture, and harsh operating environments. It is available with cable lengths of 2 m, 5 m, 10 m, and 15 m, allowing flexible installation for different tank depths.

The Cable Float Level Switch is suitable for clean water, well water, storage tanks, reservoirs, pumping stations, irrigation systems, water treatment plants, and many other industrial and commercial applications.
